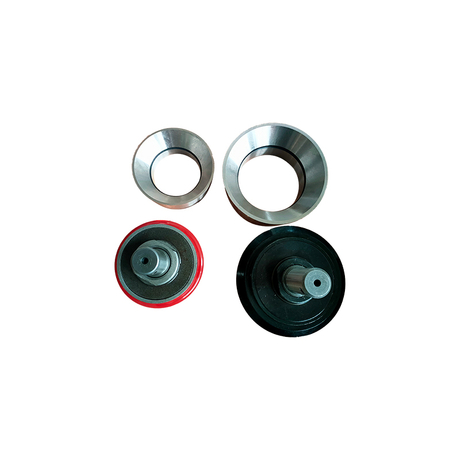

Mud Pump Valves and Valve Seats for F-800, F-1300, Pz-8, Pz-9, Pz-10, 12p160 etc Gardner Denver, Emsco, Bomco, Tsc, Oil Well, MP, Bomco
Product Description
| product name | mud pump valves and seats | ||||||
| Material | 20CrMnTi/20CrMoNi | ||||||
| Length of use | 400-600h | ||||||
| port | qingdao | ||||||
| application | high-pressure drilling operations | ||||||
| Brand | Type | ||||||
| emsco | F-350 | F-500 | F-650 | F-800 | F-1000 | FA-1300 | FB-1300 |
| FA-1600 | FB-1600 | ||||||
| gardener denver | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | ||
| national | T-800 | T-1000 | T-1300 | T-1600 | |||
| oilwell | A-350 | A-560 | A-650 | A-850 | A-1100 | A-1400 | A-1700 |
| china | 3NB-350 | 3NB-500 | 3NB-800 | 3NB-1000 | 3NB-1300 | 3NB-1600 | 3NB-2200 |
| Russian pump | UNBT950,UNB600,8T650,UNBT 1180L,NBT600,NBT300ect. |
| BOMCO/Emsco/HongHua | FB1300/1600, F1300/1600, F800/1000, F500 & some duplex pumps. |
| Gardener denver | PZ 7, PZ 8/9, PZ 10/11, KF-FXK, FY-FXD, FD-FXX, FG-FXG, FQ-FXQ, FF-FXP, FG-GXG. |
| National | 7P50, 8P80, 9P100, 10P130, 12P160, 14P220, JWS165, JWS340/400, C250/350, K700, K500, K380. |
| Oilwell | A560/600PT, A850/1100PT, A1400/1700PT, 214P, 810P. |
| Ideco | T500, T800/1000, T1300/1600. |
| Wirth | TPK1000, TPK1600, TPK2000/2200. |
| Weatherford | MP-5,MP-8,MP-10,MP-13,MP-16 |
Features, Advantages and Benefits
The threaded retainer plate with knock-off lugs enables fast insert change-out.
The large bearing area on the valve promotes a long service life.
Various insert materials are available to meet standard and high-temperature drilling conditions.
Carbon-steel valve springs are standard, with a long-life, stainless-steel upgrade available.

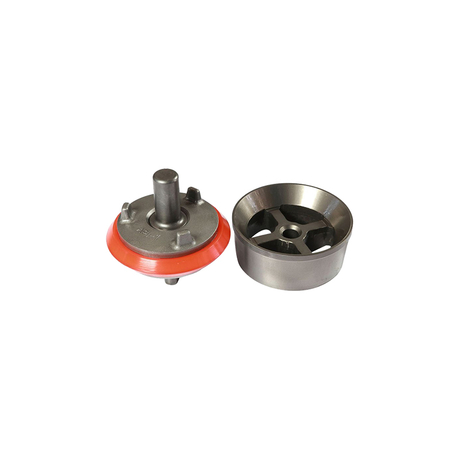

The key feature of the four-web, center-guided valve is the preloaded polyurethane insert secured with a threaded retainer plate with knock-off lugs for easy disassembly. This design enables drillers to change valve inserts quickly and minimizes downtime. The valve is best suited for low- to medium-pressure drilling operations because of the two-piece assembly of the valve body.
The center-guided design enables the valve flange to be supported under pressure loads by the top of the center-support webs in addition to the seating taper on the inside of the valve seat. This allows for a large bearing area for the valve that minimizes stress and promotes a long service life.
Our standard valve is offered with polyurethane inserts rated for 170° to 180°F (77° to 82°C) drilling-mud temperatures. We also offer a special high-temperature urethane compound as an option for high-temperature drilling conditions to 200°F (93°C) and higher.
