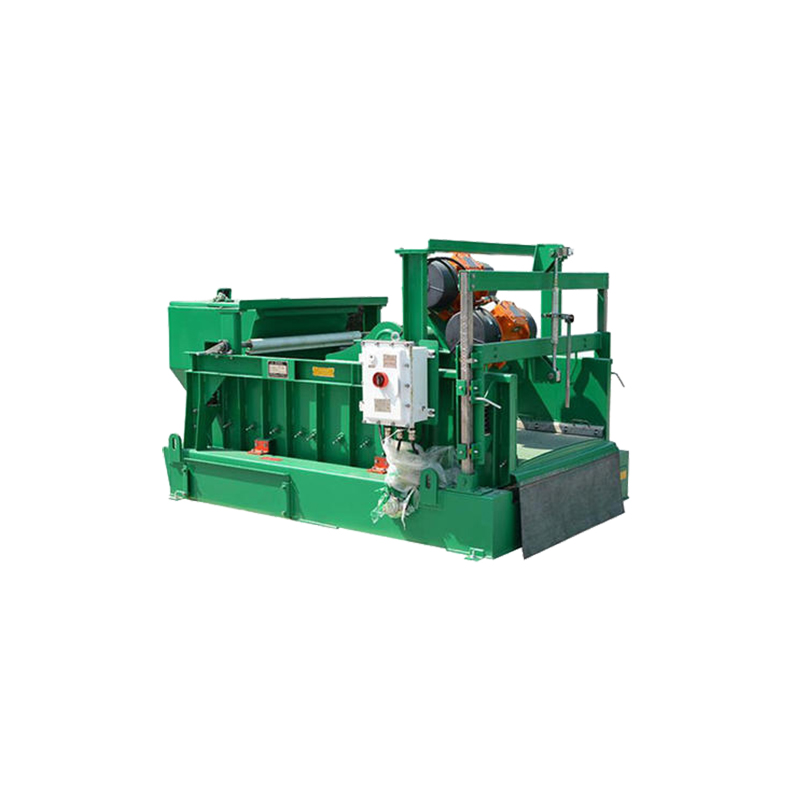

Oil drilling API solids control equipment mud Shale Shaker

Shale shaker is the first phase solid control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system. Solid control can design double shakers and truplicate shakers on single skid according to client's special requirements and also supply relevant connection manifold according to xurrent industry situation, we provide both third reneration liner motion shale shaker and fourth generation balanced elliptical shale shaker.
Shale shaker absorbed advanced tech at home and abroad, complete series shale shaker can meet custimers variablr demand. Client feedback proved the advantages for this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.
Availability:
sharethis sharing button
  • all

  • Xinhuafa

  • 84139100

Oil drilling API solids control equipment mud Shale Shaker


Hcc1db3a5b16a43e39b43525d118ea6893

Shale shaker is the first phase solid control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, shale shaker decides performance of the whole solids control system. Solid control can design double shakers and truplicate shakers on single skid according to client's special requirements and also supply relevant connection manifold according to xurrent industry situation, we provide both third reneration liner motion shale shaker and fourth generation balanced elliptical shale shaker.
Shale shaker absorbed advanced tech at home and abroad, complete series shale shaker can meet custimers variablr demand. Client feedback proved the advantages for this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.

Model
ZS752E-DM
ZS703F-HB
ZS703E-DZ
ZS954E-HB
ZS706E-HB
Viberation Model
Liner Motion
Liner Motion
Liner Motion
Liner Motion
Liner Motion
Capacity
45 m3 / h
(200GPM)
120 m3 / h
(528GPM)
140 m3 / h
(616GPM)
120 m3 / h
(528GPM)
120 m3 / h
(528GPM)
Viberation Motor
2*0.75Kw
2*1.72Kw
2*1.72Kw
2*1.72Kw
2*1.94Kw
Screen Qty
2 Panels
3 Panels
3 Panels
4 Panels
6 Panels
Screen Area
1.35 m2
2.63 m2
2.63 m2
2.7 m2
Upper layer
2.0 m3
Screen Size
(mm)
750*900
700*1250
700*1250
585*1165
Upper layer
2.0 m2
Adjustable G Force
Less than 7.1 G
Less than 7.5 G
Less than 7.5 G
Less than 7.5 G
Less than 7.5 G
Viberation Amplitude
3.92~5.62 mm
4.14~5.96 mm
4.14~5.96 mm
4.14~5.96 mm
4.14~5.96 mm
Deck Angle Range
+20
-1~+50
-1~+50
-1~+50
-1~+50
Weir Height
710 mm
735 mm
1042 mm
735 mm
895 mm
Ex Standard
Exd BT4 / IEC Ex / ATEX
Exd BT4 / IEC Ex / ATEX
Exd BT4 / IEC Ex / ATEX
Exd BT4 / IEC Ex / ATEX
Exd BT4 / IEC Ex / ATEX
Weight
910 kg
1550 kg
1700 kg
1600 kg
1870 kg
Dimension
(mm)
1670*1730*1070
2370*1940*1270
2500*1980*1480
1940*1940*1270
2730*2030*1430
