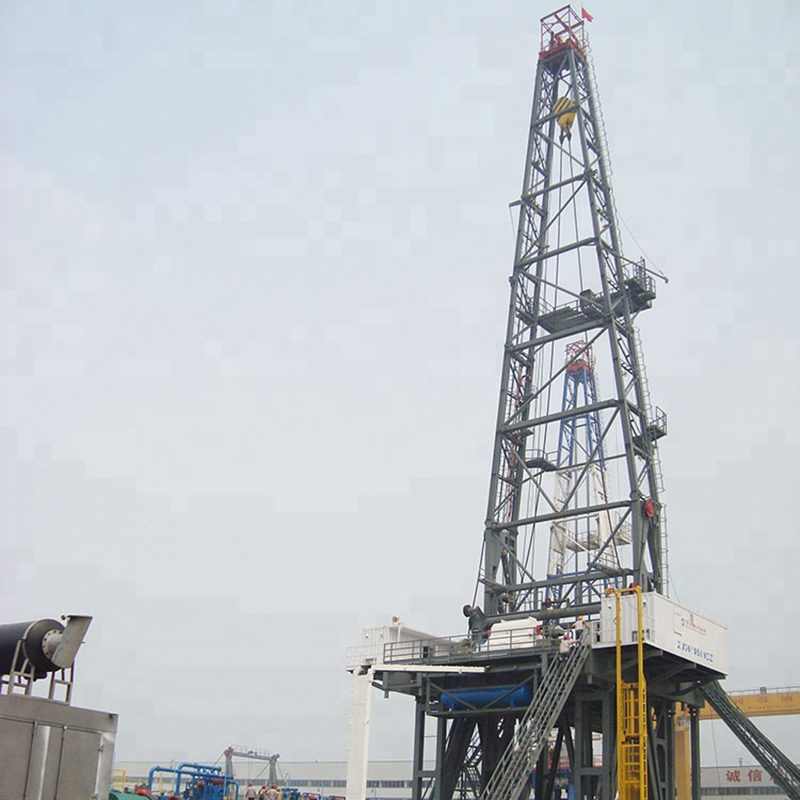

HFY30/1700J rig is mechanically driven rig, backstage drive in the form of two 12V190 diesel-powered rig, driven by a belt and car drawworks, mud pumps, energy generator or compressor. Winch with the turntable, the background and the car drive unit with integrated design, installation and transportation is very convenient. HFY30/1700J rig derrick hoisting winch power. Derrick at the lower levels, without winch powered by independent hydraulic lifting system to complete the process of release from the derrick. Has a small footprint, low mast installation, safe and reliable.
Parameter | Value | Parameter | Value |
| Nominal drilling depth | 5in DP 3000m 4 1/2inDP:3500m | Max. hook load | 1700Kn |
| Line strung of hoisting load system | 5X6 | Wrie line dia. | Ф29mm |
| Max pull of fastline | 100Kn | Max input power of drawworks | 194kw |
| Drawworks speeds | 3F+1R | Primary brake | Band brake |
| Aux. brake | Eddy brake | Drum size(D×L) | 400x600mm |
| Hook hoisting speed | 0-0.72m/s | Opening of rotary table | 445mm |
| Rotary table speeds | 2F+1R | Rated input power of rotary table | 200Kw |
| Max. static load of rotary table | 2720Kn | Max.torque of rotary talbe | 14000N.m |
| Rotary talbe speed | 0-161 r/min | Mast type | k type |
| Mast effective height | 41m | Height of monkey board | 17.5m |
| Monkey board capacity(5""DP) | 3000m | Substructure type | Piled box |
| Drill floor height | 2.4m | Drill floor area(L×W) | 11x6.4m |
| Clear height under rotary beam | 3.2 m |
Hydraulic system
Function: hydraulic system is used for Leveling jacks, mast raising oil tank, mast telescoping oil tank, workover hydraulic clamp.
Air system
The pneumatic system mainly consists of air supply system, engine throttle control system and drawworks air control system. air supply system adopt gas source of vehicle and equipped with FRL Combination.
Air control valve of main drum is installed in the operation room and used to control clutch of main drum, operation room is equipped with control valve of main drum, drawworks emergency braking valve, crash-proof reset valve.
As a professional land oil drilling rig supplier, Yingpai Drilling Machinery focus on suppying high performance land oil drilling rig for sale at low costs. If you need more details of our land oil drilling rigs, please don't hesitate to contact us and get free quotation.
